Size 42mm NEMA 17 Stepper Motor Bipolar 1.8deg 0.44Nm 0.85A 42x48mm 4 Wires

Size 42mm NEMA 17 Stepper Motor Bipolar 1.8deg 0.44Nm 0.85A 42x48mm 4 Wires

$7.50

In Stock:

20

Model: 42AI48-0854S

Weight: 0.45KG

Certificated: ISO, CE, RoHS

Ships From China

20 in stock (can be backordered)

0-85A Stepper Motor NEMA 17 48mm: This size 42mm NEMA 17 hybrid bipolar stepping motor has a 1.8° step angle(200 steps/revolution) and a moderate body length 48mm. Each phase draws a low current 0.85A, allowing for a strong holding torque of 0.44Nm.

0-85A Stepper Motor NEMA 17 48mm Specification

0-85A Stepper Motor NEMA 17 48mm

  • Part Number: 42AI48-0854S
  • Step Angle: 1.8deg
  • Bipolar/Unipolar: Bipolar
  • Holding Torque: 0.44Nm
  • Rated Current/phase: 0.85A
  • Phase Resistance: 6.2ohms
  • Inductance: 11mH
  • Driving Voltage: 12-24VDC
  • Frame Size: 42x42mm
  • Body Length: 48mm
  • Shaft Diameter: Φ5mm
  • Shaft Length: 24mm
  • D-cut Length: 15mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 400g
  • Stepper Drive: FLKH2D1228DC

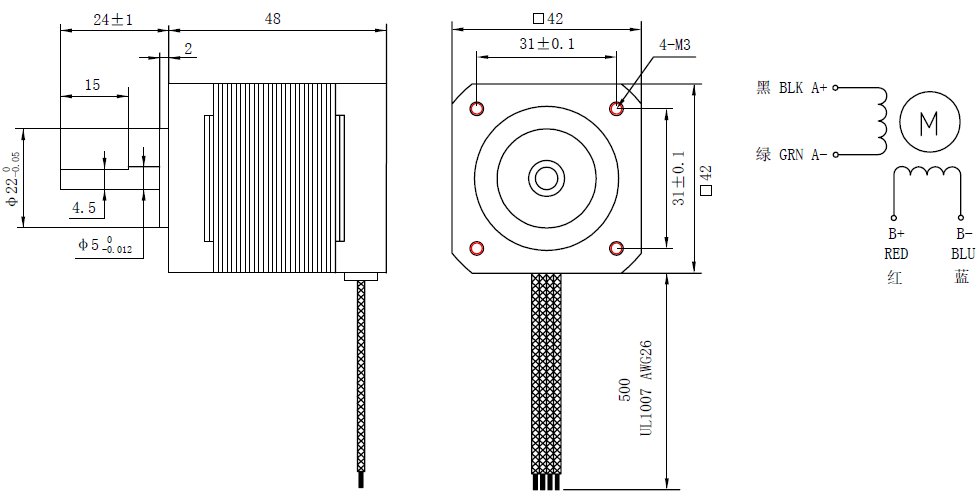

Overall Size

If you need a PDF data sheet, please send the email to: info@frankhumotor.com!
