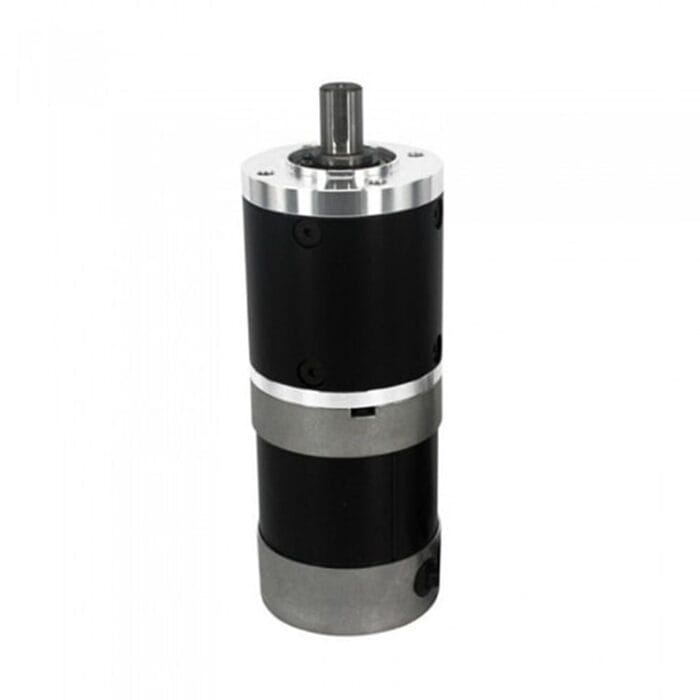

57mm Planetary DC Gearbox Motor Brushless 24V 80RPM 7.3Nm

$99.00

In Stock:

50

Model: 57AI66-24V-PG55

Weight: 1.5KG

Certificated: ISO, CE, RoHS

Ships From China

50 in stock

57mm BLDC Planetary Geared Motor: This 57AI66-24V-PG series brushless 24V dc motor is intagrated with a gear ratio of 55:1 planetary gearbox, which leads to a rated speed 80RPM and high torque 7.3Nm. It has 8 wires connection with sensor hall. It is widely used in household appliances, office automation, bank equipment, medical devices, intelligent robots, etc.

57mm BLDC Planetary Geared Motor Specification

  • Part Number: 57AI66-24V-PG55
    Rated Voltage: 24VDC
    Rated Power: 60W
    Reduction Ratio: 55:1
    Rated Torque: 7.3Nm
    No-load Speed: 109RPM
    Rated Speed: 80RPM
    Rated Current: 3.2A
    Insulation Class: B
    Sensor Type: Hall
    Body Length: 131mm
    Shaft Diameter: Φ12mm
    Shaft Length: 26.4mm
    Keyway Length: 20mm
    Weight: 1.5KG

Overall Size

57mm BLDC Planetary Geared Motor
