57mm-geared-bldc-motor-24v-planetary-250rpm-2-3nm

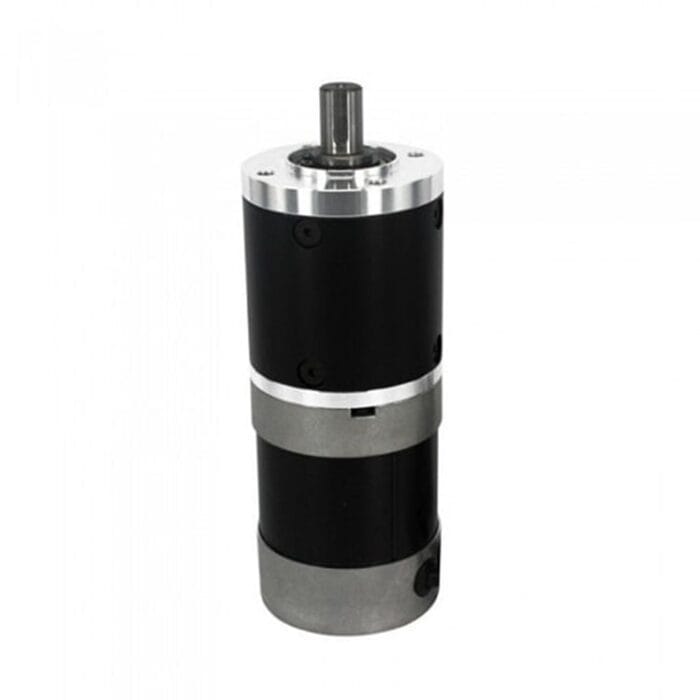

57mm Planetary DC Gearbox Motor Brushless 24V 250RPM 2.3Nm

$99.00

In Stock:

50

Model: 57AI66-24V-PG18

Weight: 1.5KG

Certificated: ISO, CE, RoHS

Ships From China

50 in stock

57mm Geared BLDC Motor: This 57AI66-24V-PG series brushless 24V dc motor is intagrated with a gear ratio of 18:1 planetary gearbox, which leads to a rated speed 250RPM and high torque 2.3Nm. It has 8 wires connection with sensor hall. It is widely used in household appliances, office automation, bank equipment, medical devices, intelligent robots, etc.

57mm Geared BLDC Motor Specification

  • Part Number: 57AI66-24V-PG18
    Rated Voltage: 24VDC
    Rated Power: 60W
    Reduction Ratio: 18:1
    Rated Torque: 2.3Nm
    No-load Speed: 330RPM
    Rated Speed: 250RPM
    Rated Current: 3.2A
    Insulation Class: B
    Sensor Type: Hall
    Body Length: 119.5mm
    Shaft Diameter: Φ12mm
    Shaft Length: 26.4mm
    Keyway Length: 20mm
    Weight: 1.5KG

Overall Size

57mm Geared BLDC Motor
