High Temperature Stepper Motor NEMA 17 Bipolar 42-48mm 0.6Nm 2A

High Temperature NEMA 17 Stepper Motor 0.6Nm 2A 42x48mm Insulation Class H

$20.00

In Stock:

10

Model: 42AI48-2004GW

Weight: 0.4KG

Certificated: ISO, CE, RoHS

Ships From China

10 in stock (can be backordered)

High Temperature NEMA 17 Stepper Motor: This high temperature size 42mm NEMA 17 stepper motor has a moderate body length 48mm, each phase draws 2.0A rated current and 0.6Nm holding torque. This motor has a customized winding, bearing, magnetic steel and plastic skeleton in order to achieve insulation class of H (the temprature reach up to 180C degree), which is widely used for high temperature rise application such as 3D Printer, robots, extruders, etc.

High Temperature NEMA 17 Stepper Motor SpecificationHigh Temperature NEMA 17 Stepper Motor

  • Part Number: 42AI48-2004GW
  • Step Angle: 1.8deg
  • Bipolar/Unipolar: Bipolar
  • Holding Torque: 0.6Nm
  • Rated Current/phase: 2.0A
  • Insulation Class: H
  • Driving Voltage: 12-24VDC
  • Frame Size: 42x42mm
  • Body Length: 48mm
  • Shaft Diameter: Φ5mm
  • Shaft Length: 24mm
  • D-cut Length: 22mm
  • Number of Leads: 4
  • Lead Length: 1000mm
  • Weight: 400g
  • Stepper Drive: FLKH2D1228DC

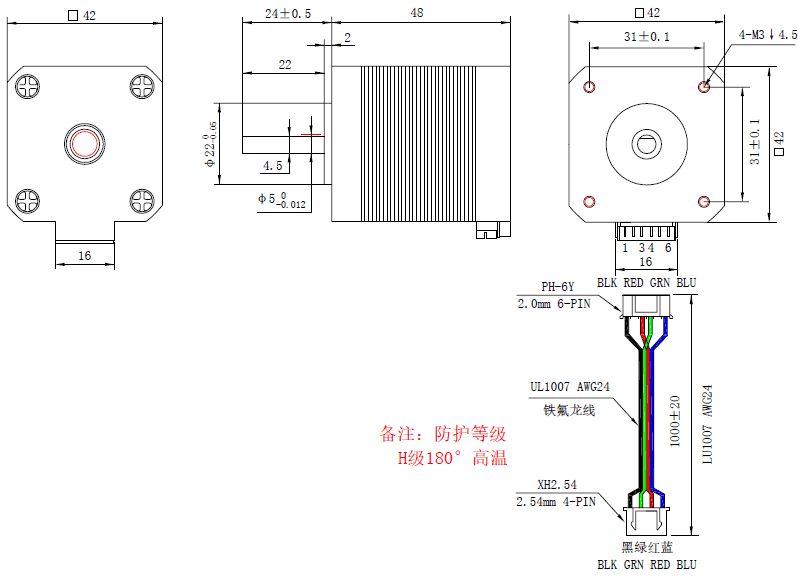

Overall Size

42AI48-2004GW Datasheet

Motor 4 Leads Connection: A+(Black), A-(Green); B+(Red), B-(Blue)

If you need a PDF data sheet, please send the email to: info@frankhumotor.com!
