Size 28mm NEMA11 Hollow Shaft Closed-loop Stepper Motor 2500CPR Encoder with Mounting Nozzle Head & Trachea

Size 28mm NEMA11 Hollow Shaft Closed-loop Stepper Motor 2500CPR Encoder with Mounting Nozzle Head & Trachea

$80.00

In Stock:

10

Model: 28AI33EC-1004K-SMT

Weight: 0.25KG

Certificated: ISO, CE, RoHS

Ships From China

10 in stock (can be backordered)

NEMA 11 Closed loop SMT Stepper Motor: This small motor kit is composed of a size 28mm NEMA 11 hollow shaft closed loop stepper motor with 2500cpr encoder, SAMSUNG nozzle head and a trachea. It is specially designed for SMT Dispensing Machine.

NEMA 11 Closed loop SMT Stepper Motor Specification

NEMA 11 Closed loop SMT Stepper Motor

  • Part Number: 28AI33EC-1004K-SMT
    Step Angle: 1.8deg
    Bipolar/Unipolar: Bipolar
    Holding Torque: 0.07Nm
    Rated Current/phase: 1.0A
    Driving Voltage: 12-24VDC
    Frame Size: 28x28mm
    Motor Length: 33mm
    Encoder Type: Resolution
    Encoder Resolution: 1000CPR
    Shaft Type: Hollow Shaft
    Number of Leads: 4
    Lead Length: 500mm
    Nozzle Type: SAMSUNG

NEMA11 Hollow Shaft Stepper Motor Dual Shaft With Mounting Nozzle Head & Trachea

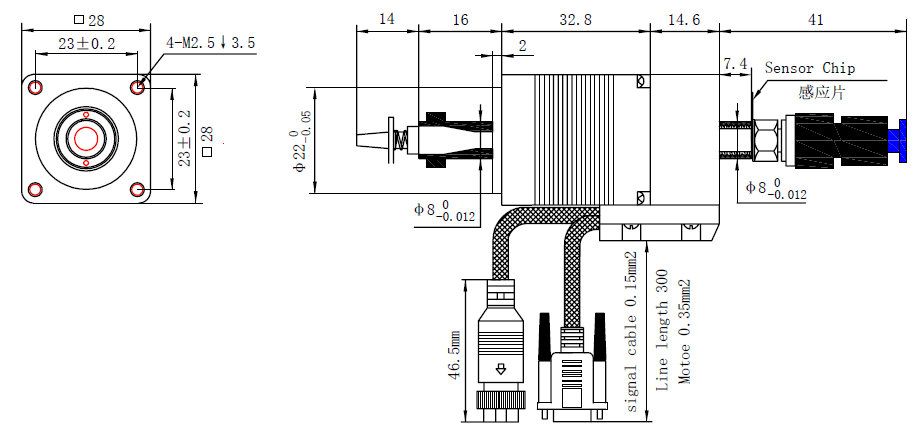

Overall Size

The available SAMSUNG nozzle models have: CN020 CN030 CN040 CN065 CN100 CN140 CN220 CN400 CN750 CN1100 CN400N. If need other nozzles, please feel free to contact us through email: info@frankhumotor.com.
