NEMA 11 Double Stacked Stepper Motor Assembled

NEMA 11 Double Stacked Assembled Stepper Motor Bipolar 1.8deg 0.07Nm 1A 28x32mm

$45.00

In Stock:

5

Model: 28AI32-1004S-LT2

Weight: 0.35KG

Certificated: ISO, CE, RoHS

Ships From China

5 in stock (can be backordered)

NEMA 11 Double Stacked Stepper Motor:  This size 28mm double stacked hybrid bipolar stepping motor has a 1.8° step angle(200 steps/revolution) and is assembled by one hollow shaft motor and one solid shaft motors. Each phase draws current 1.0A, allowing for a holding torque of 0.07Nm.

NEMA 11 Double Stacked Stepper Motor SpecificationNEMA 11 Double Stacked Stepper Motor

  • Part Number: 28AI32-1004S-LT2
  • Step Angle: 1.8deg
  • Bipolar/Unipolar: Bipolar
  • Holding Torque: 0.07Nm
  • Rated Current/phase: 1.0A
  • Phase Resistance: 2.1ohms
  • Inductance: 1.5mH
  • Driving Voltage: 12-24VDC
  • Frame Size: 28x28mm
  • Body Length: 64mm
  • Hollow Shaft Diameter: Φ8mm
    Solid Shaft Diameter: Φ5mm
    Hollow Shaft Length: 12mm
    Solid Shaft Length: 24mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 350g
  • Stepper Drive: FLKH2D1228DC

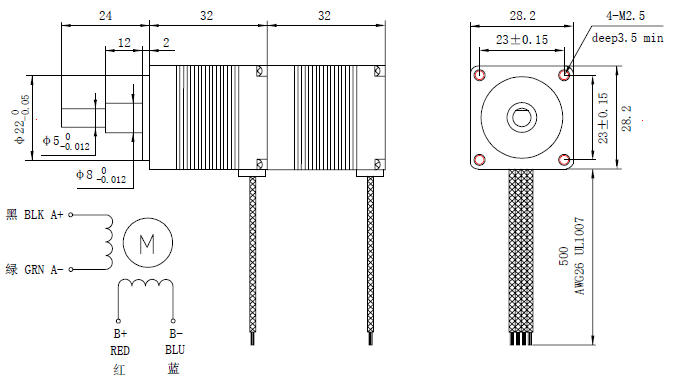

Overall Size

28AI32-1004S-LT2 Datasheet

If you need a PDF data sheet, please send the email to: info@frankhumotor.com!
