Size 28mm NEMA 11 Hollow Shaft Stepper Motor M8 Thread 0.12Nm 0.95A 28x51mm

Size 28mm NEMA 11 Hollow Shaft Stepper Motor M8 Thread 0.12Nm 0.95A 28x51mm

$25.00

In Stock:

5

Model: 28AI51-0954M

Weight: 0.3KG

Certificated: ISO, CE, RoHS

Ships From China

5 in stock (can be backordered)

NEMA 11 Hollow Shaft Stepper Motor M8 Thread: This small size 28mm NEMA 11 hollow shaft stepper motor has a body length 51mm with 0.95A rated current & holding torque 0.12Nm. A hollow shaft with outer diameter Φ8mm & inner diameter Φ4.2mm is available and also a double shaft with the front shaft length 14mm with M8 thread and rear shaft length 7mm is designed.

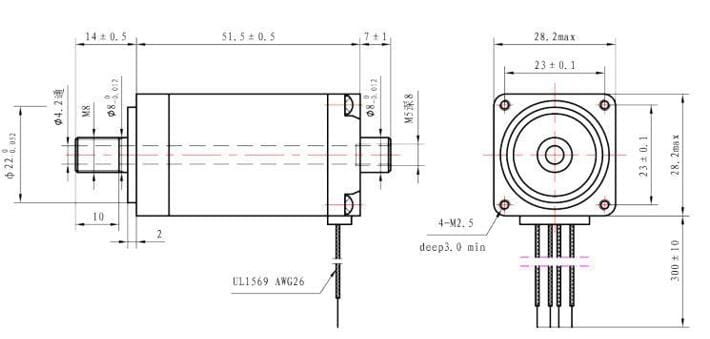

NEMA 11 Hollow Shaft Stepper Motor M8 Thread Specification

NEMA 11 Hollow Shaft Stepper Motor M8 Thread

  • Part Number: 28AI51-0954M
    Step Angle: 1.8deg
    Bipolar/Unipolar: Bipolar
    Holding Torque: 0.12Nm
    Rated Current/phase: 0.95A
    Driving Voltage: 12-24VDC
    Frame Size: 28x28mm
    Body Length: 51mm
    Shaft Type: Hollow Shaft
    Inner Diameter: Φ4.2mm
    Outer Diameter: Φ8.0mm
    Front Shaft Length: 14mm with M8 thread
    Rear Shaft Length: 7mm
    Number of Leads: 4
    Lead Length: 300mm
    Weight: 250g
  • Stepper Drive: FLKH2D1228DC
