Size 28mm NEMA 11 Pancake Stepper Motor Round 0.016Nm 0.5A 28x9.5mm 16 Teeth Gear

Size 28mm NEMA 11 Pancake Stepper Motor Round 0.016Nm 0.5A 28×9.5mm 16 Teeth Gear

$15.00

In Stock:

10

Model: 28AI10-0504T

Weight: 0.1KG

Certificated: ISO, CE, RoHS

Ships From China

10 in stock (can be backordered)

NEMA 11 Ultrathin Motor: This size 28mm NEMA 11 pancake stepper motor has a ultrathin body length 9.5mm, each phase draws 0.5A current and 0.016Nm holding torque. A 16 teeth gear with 0.5 module is mounted on the shaft.

NEMA 11 Ultrathin Motor Specification

NEMA 11 Ultrathin Motor

  • Part Number: 28AI10-0504T
  • Step Angle: 1.8deg
  • Bipolar/Unipolar: Bipolar
  • Holding Torque: 0.016Nm
  • Rated Current/phase: 0.5A
  • Phase Resistance: 3.5ohms
  • Inductance: 0.9mH
  • Driving Voltage: 12-24VDC
  • Frame Size: Φ28mm
  • Body Length: 9.5mm
  • Gear Teeth Number: 16
  • Gear Module: 0.5
  • Number of Leads: 4
  • Lead Length: 75mm
  • Weight: 75g
  • Stepper Drive: FLKH2D1228DC

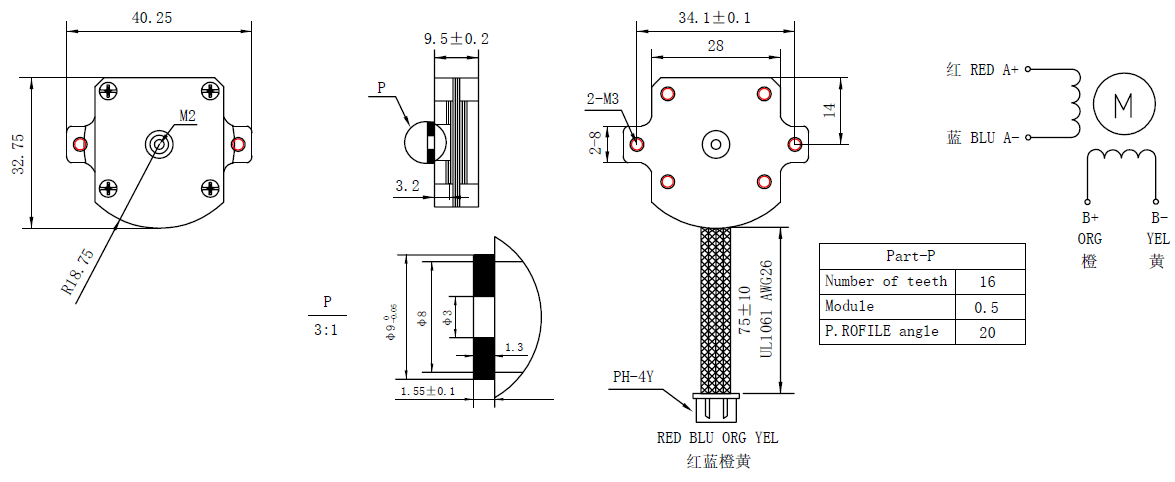

Overall Size

If you need a PDF data sheet, please send the email to: info@frankhumotor.com!
