NEMA 14 Closed-loop Hollow Shaft Stepper Motor with Encoder

NEMA 14 Closed-loop Hollow Shaft Stepper Motor Dual Shaft 0.2Nm with 2500CPR Encoder

$65.00

In Stock:

5

Model: 35AI33EC2-K16

Weight: 0.35KG

Certificated: ISO, CE, RoHS

Ships From China

5 in stock (can be backordered)

NEMA 14 Hollow Shaft Motor with Encoder: This compact size 35mm clsoed loop NEMA 14 hollow shaft stepper motor has a body length 43.5mm with 2500cpr optical incremental encoder, 1.5A rated current and holding torque 0.2Nm. A hollow shaft with outer diameter Φ8mm & inner diameter Φ3.7mm is available and also a double shaft with the front shaft length 16mm and rear shaft length 7.5mm is designed.

NEMA 14 Hollow Shaft Motor with Encoder Specification

  • Part Number: 35AI33EC2-K16
    Step Angle: 1.8deg
    Bipolar/Unipolar: Bipolar
    Holding Torque: 0.2Nm
    Rated Current/phase: 1.5A
    Driving Voltage: 12-24VDC
    Frame Size: 35x35mm
    Body Length: 43.5mm
    Shaft Type: Hollow Shaft
    Inner Diameter: Φ8.0mm
    Outer Diameter: Φ3.7mm
    Front Shaft Length: 16mm
    Rear Shaft Length: 7.5mm
    Encoder Resolution: 2500CPR
  • Stepper Drive: CL42C

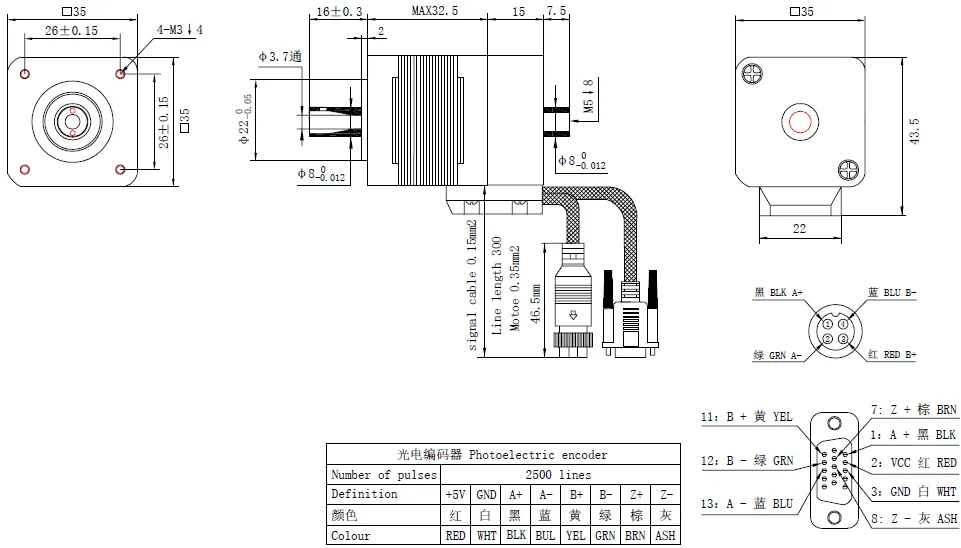

Overall Size

NEMA 14 Hollow Shaft Motor with Encoder
