Size 42mm NEMA 17 Closed-loop Worm Gearbox Reducer Stepper Motor with 1000CPR Encoder

Size 42mm NEMA 17 Closed-loop Worm Gearbox Reducer Stepper Motor with 1000CPR Encoder

$65.00

In Stock:

10

Model: 42AI48EC-WGXX

Weight: 0.9KG

Certificated: ISO, CE, RoHS

Ships From China

NEMA 17 Closed loop Worm Reducer Motor: This compact geared closed-loop stepper motor has a frame size 42-48mm with rated current 2a, integrated with a WG series worm reduction gearbox & a 1000cpr resolution incremental optical encoder. It is an an ideal choice for the applications that require high torque or low speed but high precision motion control and positioning feedback and self-locked function.

NEMA 17 Closed loop Worm Reducer Motor Specification

NEMA 17 Closed loop Worm Reducer Motor

  • Part Number: 42AI48EC-WGXX
  • Step Angle: 1.8deg w/o gearbox
  • Bi/Unipolar: Bipolar
  • Holding Torque: 0.59Nm w/o gearbox
  • Rated Current/phase: 2.0A
  • Frame Size: 42x42mm
  • Motor Length: 48mm
  • Number of Leads: 4
  • Lead Length: 1000mm
  • Encoder Type: Incremental Optical
  • Encoder Resolution: 1000CPR
  • Gearbox Type: Worm
  • Gear Ratio: 4-500:1
  • Efficiency: 80%-60%
  • Backlash at No-load: 3deg-5deg
  • Gearbox Length: 64mm
  • Shaft Diameter: Φ8mm
  • Shaft Length: 15mm
  • Keyway Length: 13mm
  • Stepper Drive: CL42C

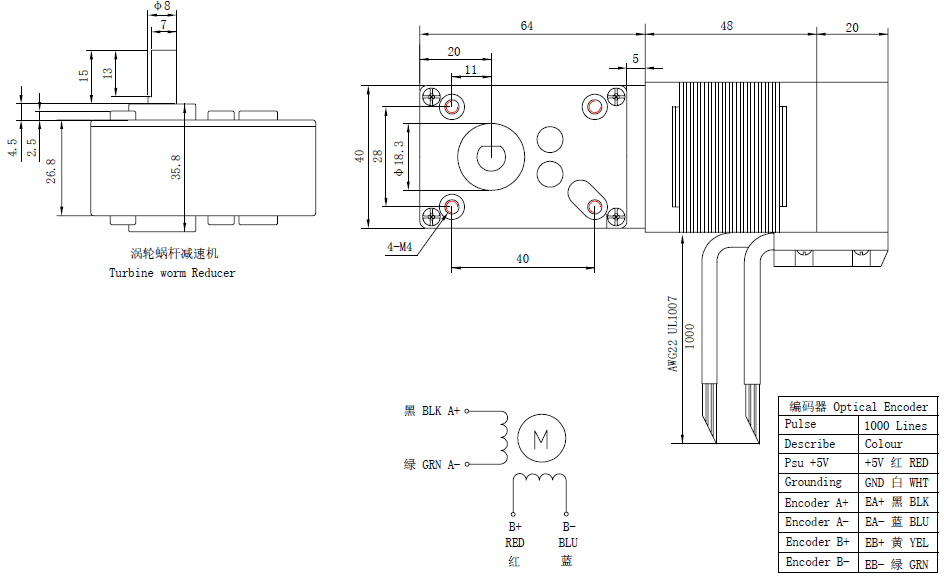

Overall Size

If you need a PDF data sheet, please send the email to: info@frankhumotor.com!
