Size 42mm NEMA 17 L=60mm HG Series Precision Planetary Gearbox Reduction Stepper Motor

Size 42mm NEMA 17 L=60mm HG Series Precision Planetary Gearbox Reduction Stepper Motor

$60.00 – $65.00

In Stock:

10

Model: 42AI60-1804S-HGXX

Weight: 0.9KG

Certificated: ISO, CE, RoHS

Ships From China

NEMA 17 Geared Stepper 60mm: This compact geared stepper motor has a frame size 42-60mm with rated current 1.8a, integrated with a HG series high precision planetary gearbox that has a wide range of gear ratio 3 to 100. It is an ideal choice for the applications that require high torque or low speed but high precision motion control.

NEMA 17 Geared Stepper 60mm Specification

NEMA 17 Geared Stepper 60mm

  • Part Number: 42AI60-1804S-KGXX
  • Step Angle: 1.8deg w/o gearbox
  • Bi/Unipolar: Bipolar
  • Holding Torque: 0.7Nm w/o gearbox
  • Rated Current/phase: 1.8A
  • Frame Size: 42x42mm
  • Motor Length: 60mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Gearbox Type: Planetary
  • Gear Ratio: 3-100:1
  • Efficiency: 96%-92%
  • Backlash at No-load: 15arcmin-24arcmin
  • Gearbox Length: 43mm-53.5mm
  • Shaft Diameter: Φ8mm
  • Shaft Length: 21.5mm
  • Keyway Length: 14mm
  • Stepper Drive: FLKH2D1228DC

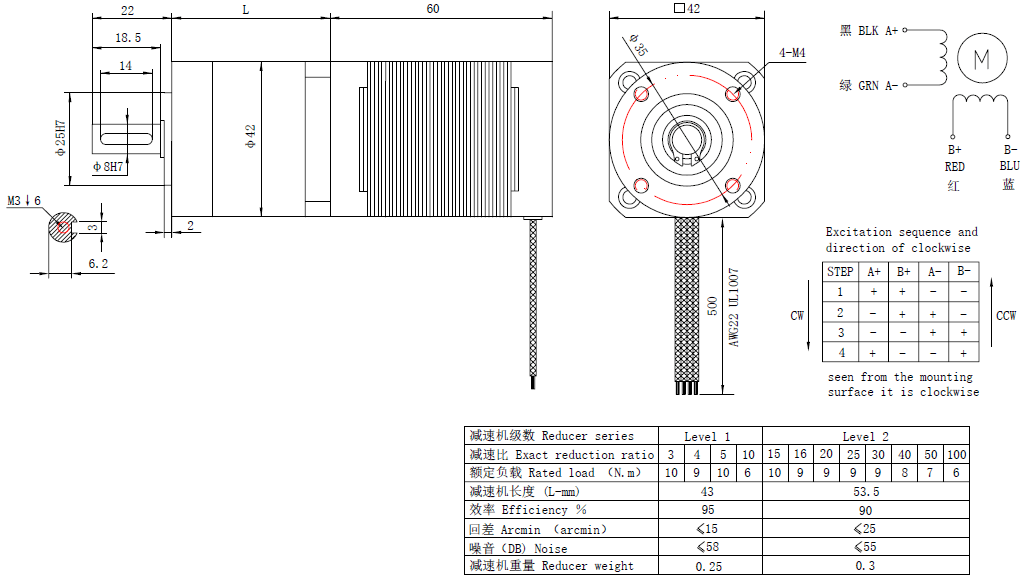

Overall Size

Motor 4 Leads Connection: A+(Black), A-(Green); B+(Red), B-(Blue)

Gearbox Length(L)=43mm for ratio 5/1, 10/1; 53.5mm for ratio 20/1, 50/1, 100/1.

If you need a PDF data sheet, please send the email to: info@frankhumotor.com!
