NEMA 17 Geared Stepper Motor 40mm: This compact geared stepper motor has a frame size 42-40mm with rated current 1.68a, integrated with a KG series high precision planetary gearbox that has a wide range of gear ratio 3 to 100. It is an ideal choice for the applications that require high torque or low speed but high precision motion control.
NEMA 17 Geared Stepper Motor 40mm Specification
- Part Number: 42AI40-1684A-KGXX
- Step Angle: 1.8deg w/o gearbox
- Bi/Unipolar: Bipolar
- Holding Torque: 0.45Nm w/o gearbox
- Rated Current/phase: 1.68A
- Frame Size: 42x42mm
- Motor Length: 40mm
- Number of Leads: 4
- Lead Length: 500mm
- Gearbox Type: Planetary
- Gear Ratio: 4-70:1
- Efficiency: 96%-94%
- Backlash at No-load: 15arcmin-20arcmin
- Gearbox Length: 40mm-51mm
- Shaft Diameter: Φ8mm
- Shaft Length: 21mm
- Keyway Length: 14mm
- Stepper Drive: FLKH2D1228DC

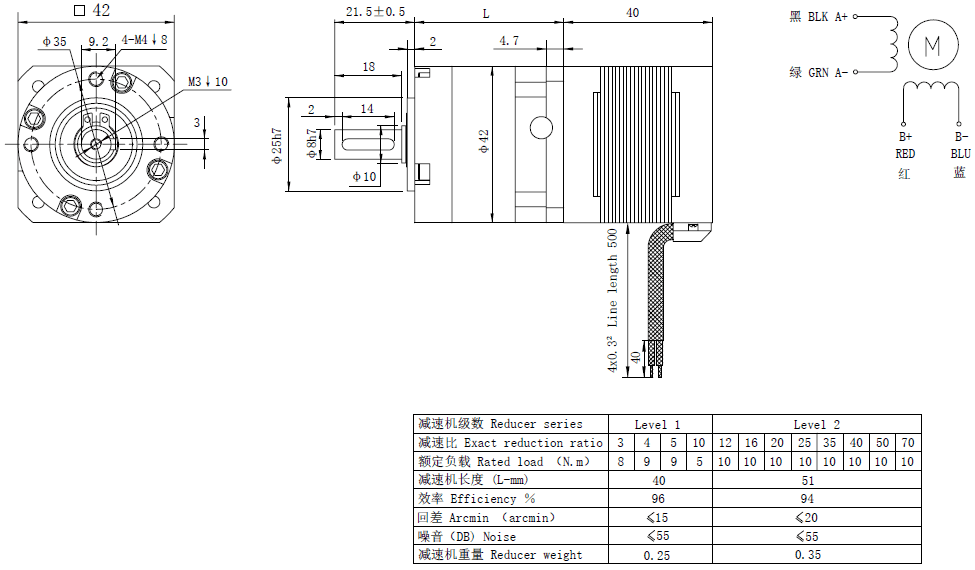

Overall Size
Gearbox Length(L)=40mm for ratio 5/1, 10/1; 51mm for ratio 20/1, 50/1, 100/1.
Motor 4 Leads Connection: A+(Black), A-(Green); B+(Red), B-(Blue)
If you need a PDF data sheet, please send the email to: info@frankhumotor.com!
