NEMA 17 Hollow Shaft Stepper Motor Long Axis

Size 42mm NEMA 17 Hollow Shaft Stepper Motor Long Axis 0.5Nm 1.68A 42x48mm

$45.00

In Stock:

5

Model: 42HS48-174A-K83

Weight: 0.5KG

Certificated: ISO, CE, RoHS

Ships From China

5 in stock (can be backordered)

NEMA 17 Hollow Shaft Motor Long Axis: This compact size 42mm NEMA 17 hollow shaft stepper motor has a body length 48mm with 1.68A rated current & holding torque 0.5Nm. A hollow shaft with outer diameter Φ8mm & inner diameter Φ4.2mm is available and also a dual shaft with super long front shaft of length 82.5mm & rear shaft length 13mm is designed.

NEMA 17 Hollow Shaft Motor Long Axis Specification

  • Part Number: 42HS48-174A-K83
    Step Angle: 1.8deg
    Bipolar/Unipolar: Bipolar
    Holding Torque: 0.5Nm
    Rated Current/phase: 1.68A
    Driving Voltage: 12-24VDC
    Frame Size: 42x42mm
    Body Length: 48mm
    Shaft Type: Hollow Shaft
    Inner Diameter: Φ4.2mm
    Outer Diameter: Φ8mm
    Front Shaft Length: 82.5mm
    Rear Shaft Length: 13mm
    Number of Leads: 4
    Lead Length: 500mm
    Weight: 500g
  • Stepper Drive: FLKH2D1228DC

NEMA 17 Hollow Shaft Motor Long Axis

Reviews

There are no reviews yet.

Be the first to review “Size 42mm NEMA 17 Hollow Shaft Stepper Motor Long Axis 0.5Nm 1.68A 42x48mm”

Your email address will not be published. Required fields are marked *

Tag: 0.5nm, 1.68a, hollow shaft, lengthened shaft, long axis, long shaft, m8 thread, nema 17, nema 17 dual shaft

Related Products

  • NEMA 34 Hollow Shaft Stepper Motor 4.5Nm 4A 86x76mm

    NEMA 34 Hollow Shaft Stepper Motor Slot Port 4.5Nm 4A 86x76mm

    $65.00

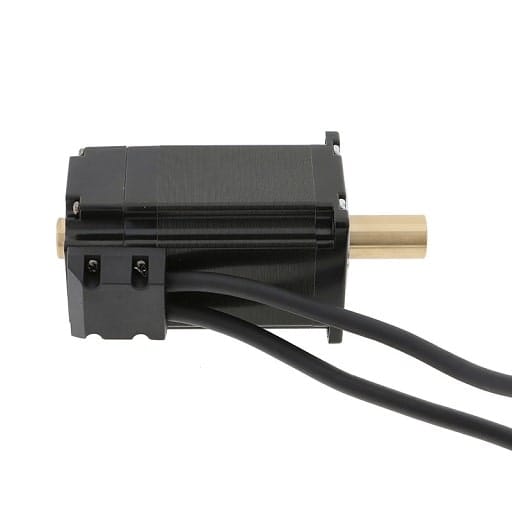

  • NEMA 23 Closed-loop Hollow Shaft Stepper Motor
