Size 42mm NEMA 17 Linear Actuator Stepper Motor External Type 48mm Stack Lead 8mm Length 300mm

Size 42mm NEMA 17 Linear Actuator Stepper Motor External Type 48mm Stack Lead 8mm Length 300mm

$45.00

In Stock:

5

Model: 42AI48-1684E-300N88

Weight: 0.5KG

Certificated: ISO, CE, RoHS

Ships From China

5 in stock (can be backordered)

NEMA 17 Linear Actuator Stepper Motor 48mm: This size 42mm model is a NEMA 17 External type lead screw linear actuator stepper motor with a 48mm body length, 1.8 degree step angle and 1.68A rated current. It is integrated with a Φ8mm diameter, 300mm lead screw length and a POM screw nut, the linear travel is 8mm per revolution/0.04mm per step. It has the characteristics of high performance, high thrust, long life, low noise and high efficiency

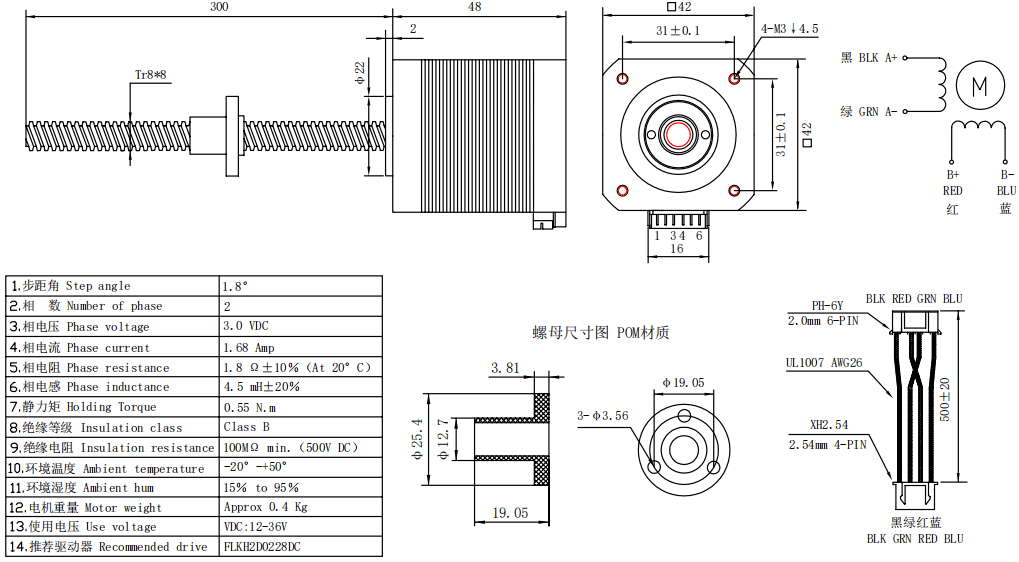

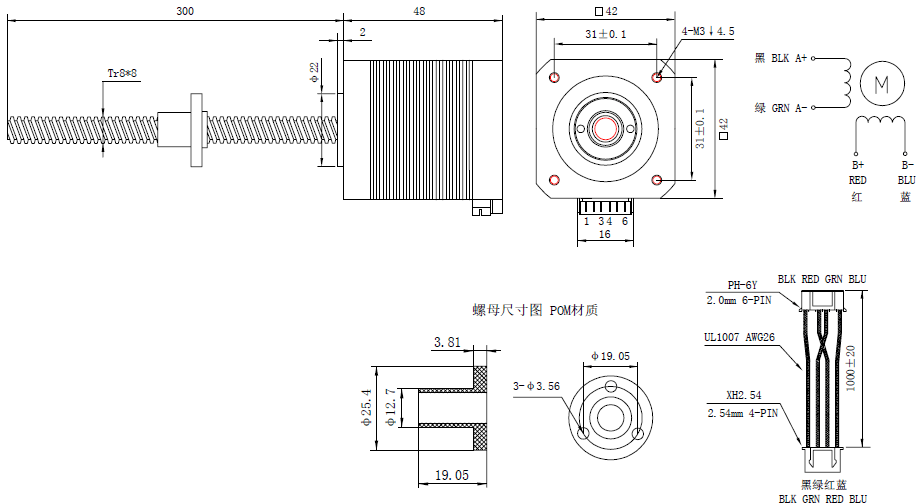

NEMA 17 Linear Actuator Stepper Motor 48mm Specification

NEMA 17 Linear Actuator Stepper Motor 48mm

  • Part Number: 42AI48-1684E-300N88
  • Motor Type: External
  • Step Angle: 1.8deg
  • Bi/Unipolar: Bipolar
  • Rated Current/phase: 1.68A
  • Driving Voltage: 12-24VDC
  • Frame Size: 42x42mm
  • Body Length: 48mm
  • Lead Screw Length: 300mm
  • Lead Screw Diameter: Φ8mm
  • Lead/Revolution: 8mm
  • Lead/Step: 0.04mm
  • Number of Leads: 4
  • Lead Length: 1000mm
  • Weight: 400g
  • Stepper Drive: FLKH2D1228DC
