YT Size 42mm NEMA17 Integrated Closed-loop Stepper Servo Drive Controller Motor 0.59Nm

YT Size 42mm NEMA17 Integrated Closed-loop Stepper Servo Drive Controller Motor 0.59Nm

$48.00

In Stock:

20

Model: 42AI48YT-EC

Weight: 0.6KG

Certificated: ISO, CE, RoHS

Ships From China

20 in stock (can be backordered)

NEMA 17 Stepper Drive Motor with Encoder: This YT series size 42 NEMA 17 integrated closed-loop stepper motor has combined the stepper motor with highly integrated drive & encoder, which is easily used, save the mounting space and solve the loss step issue compared to open loop steper motor. The integrated drive can support PUL/DIR control and motor direction can be easily changed by the switch 1. A wide ranges of subdivision 200-25600 can be set by switch 3 to switch 6.

NEMA 17 Stepper Drive Motor with Encoder Specification

NEMA 17 Stepper Drive Motor with Encoder

  • Part Number: 42AI48YT-EC
  • Step Angle: 1.8deg
  • Bipolar/Unipolar: Bipolar
  • Holding Torque: 0.59Nm
  • Frame Size: 42x42mm
  • Motor Length: 48mm
  • Shaft Diameter: Φ8mm
  • Shaft Length: 24mm
  • Encoder Feedback: Yes
  • Output Current: 2.1-2.8A
  • Input Voltage: 12-40VDC
  • Micro-step Resolutions: 200-25,600
  • Driver Length: 23mm
  • Round Gearbox: 42mm square gearbox
  • Square Gearbox: 42mm round gearbox

NEMA 17 Closed-Loop Stepper Servo Motor 0.45Nm/0.59Nm/0.7Nm With 1000CPR Encoder & Electromagnetic Brake

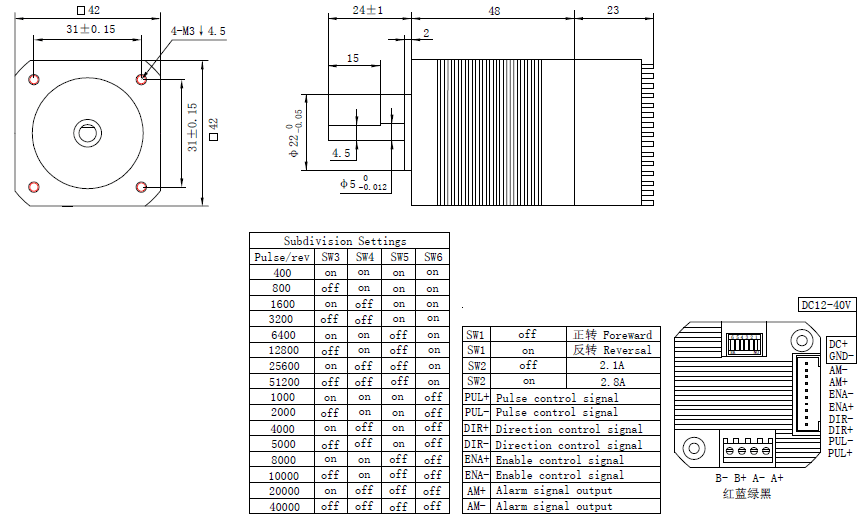

Overall Size
