Size 42mm NEMA 17 Stepper Motor Bipolar 0.9deg 0.46Nm 2A 42x48mm Long Axis

Size 42mm NEMA 17 Stepper Motor Bipolar 0.9deg 0.46Nm 2A 42x48mm Long Axis

$9.50

In Stock:

10

Model: 42AI48-204MA-D80

Weight: 0.45KG

Certificated: ISO, CE, RoHS

Ships From China

10 in stock (can be backordered)

NEMA 17 Stepper Motor 48mm Long Axis: This size 42mm NEMA 17 hybrid bipolar stepping motor has a 0.9° step angle(400 steps/revolution) and a moderate body length 48mm. Each phase draws a current 2A, allowing for a strong holding torque of 0.46Nm. A super long axis of 80mm is available, which is specially desgined for 3D printing or Robots.

NEMA 17 Stepper Motor 48mm Long Axis Specification

NEMA 17 Stepper Motor 48mm Long Axis

  • Part Number: 42AI48-204MA-D80
  • Step Angle: 0.9deg
  • Bipolar/Unipolar: Bipolar
  • Holding Torque: 0.46Nm
  • Rated Current/phase: 2.0A
  • Phase Resistance: 1.4ohms
  • Inductance: 3.0mH
  • Driving Voltage: 12-24VDC
  • Frame Size: 42x42mm
  • Body Length: 48mm
  • Shaft Diameter: Φ5mm
  • Shaft Length: 80mm
  • D-cut Length: 70mm
  • Number of Leads: 4
  • Lead Length: 1000mm
  • Weight: 400g
  • Stepper Drive: FLKH2D1228DC

Overall Size

Motor 4 Leads Connection: A+(Black), A-(Green); B+(Red), B-(Blue)

If you need a PDF data sheet, please send the email to: info@frankhumotor.com!

Reviews

There are no reviews yet.

Be the first to review “Size 42mm NEMA 17 Stepper Motor Bipolar 0.9deg 0.46Nm 2A 42x48mm Long Axis”

Your email address will not be published. Required fields are marked *

Tag: 0.46nm, 0.9deg step angle, 42-48mm, long axis, nema 17 stepper

Related Products

  • nema-17-stepper-motor-short-axle-42-23mm

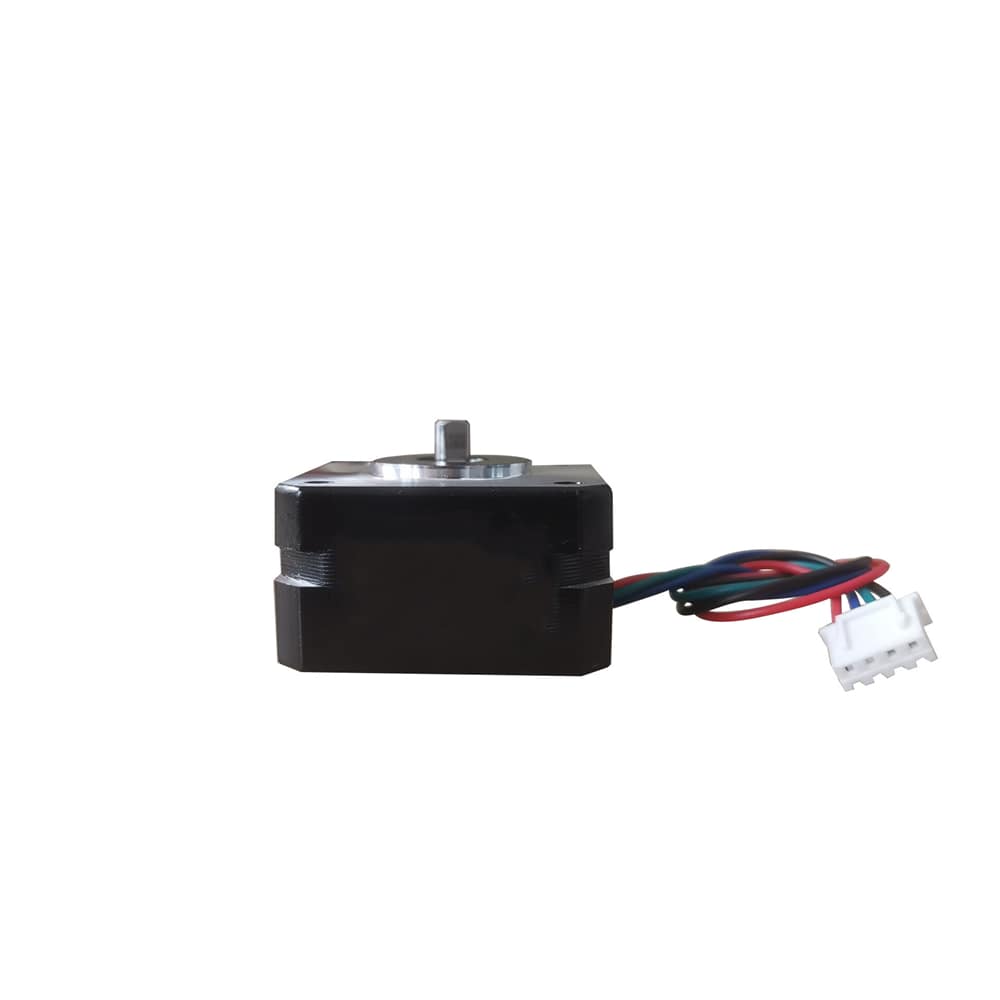

    NEMA 17 Stepper Motor Short Axle Bipolar 1.8deg 0.16Nm 1.0A 42x23mm

    $6.10

  • nema-17-stepper-motor-short-axis-0-59nm-42-48mm

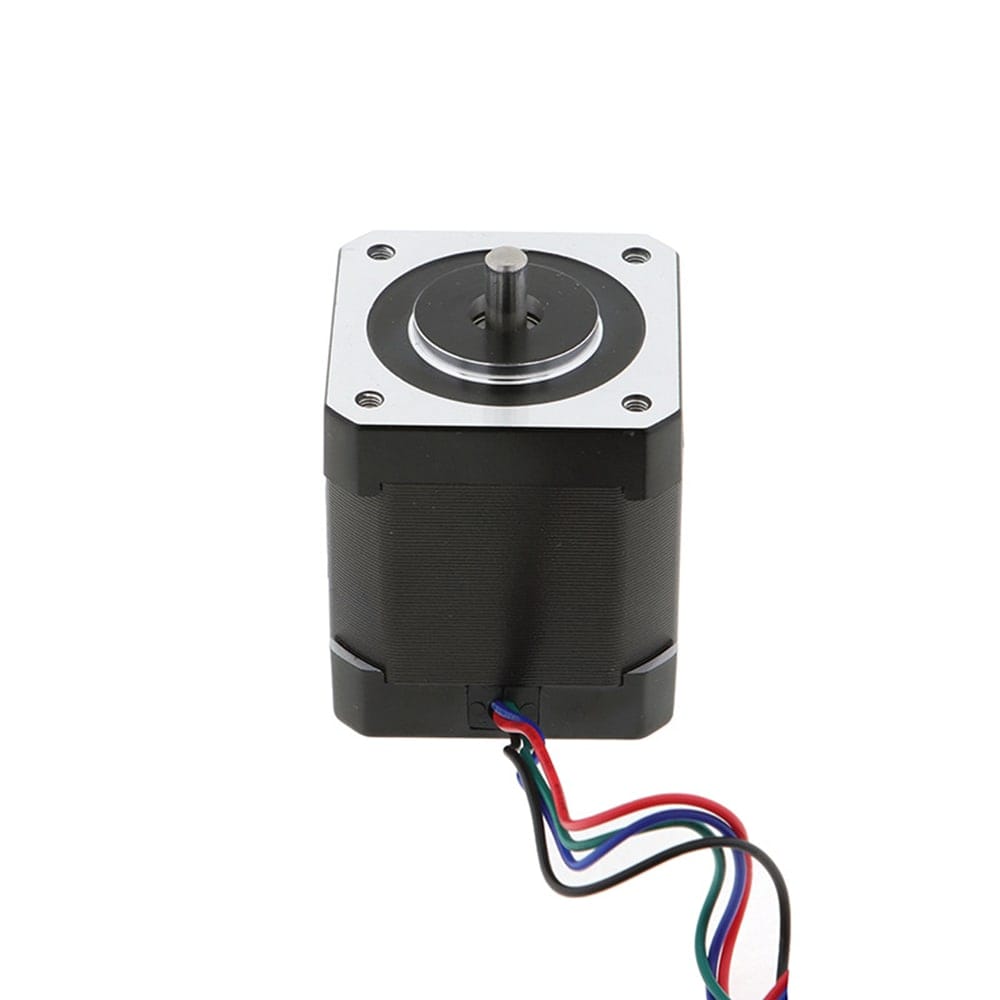

    NEMA 17 Stepper Motor Short Axis Bipolar 1.8deg 0.59Nm 2.0A 42x48mm

    $7.50

  • nema-17-short-shaft-stepper-motor-0-45nm-42-40mm

    NEMA 17 Short Shaft Stepper Motor Bipolar 1.8deg 0.45Nm 1.68A 42x40mm

    $7.10

  • NEMA 51 Stepper Motor 1.2deg 50Nm 6.8A 130x283mm

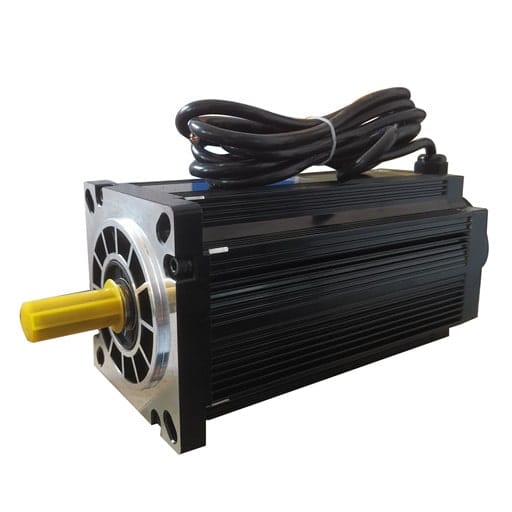

    3 Phase NEMA 51 Stepper Motor 1.2deg 50Nm 6.8A 130x283mm 3 Leads
