Size 57mm NEMA 23 Linear Actuator Stepper Motor External Type 56mm Stack Lead 4mm Length 150mm

Size 57mm NEMA 23 Linear Actuator Stepper Motor External Type 56mm Stack Lead 4mm Length 150mm

$50.00

In Stock:

5

Model: 57AI56-2804E-150N104

Weight: 0.8KG

Certificated: ISO, CE, RoHS

Ships From China

5 in stock (can be backordered)

NEMA 23 Linear Actuator Stepper Motor External: This size 57mm model is a NEMA 23 External type lead screw linear actuator stepper motor with a 56mm body length, 1.8 degree step angle and 2.8A rated current. It is integrated with a Φ10mm diameter, 150mm lead screw length and a POM screw nut, the linear travel is 4mm per revolution/0.02mm per step. It has the characteristics of high performance, high thrust, long life, low noise and high efficiency.

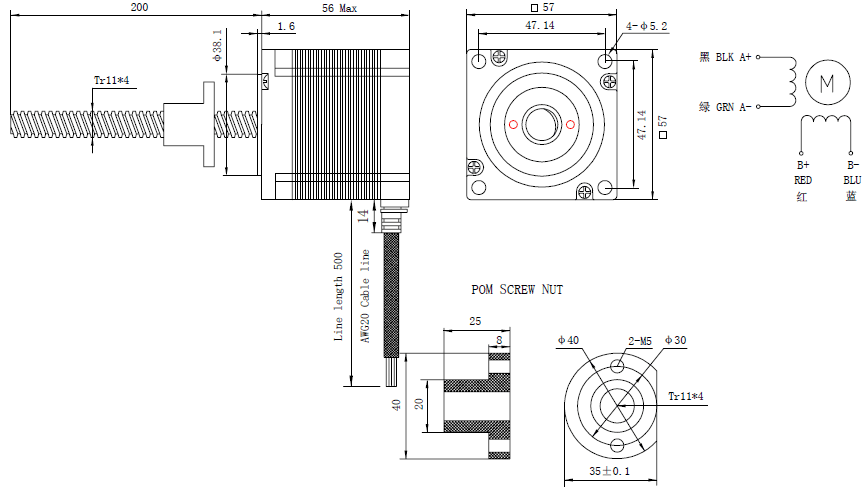

NEMA 23 Linear Actuator Stepper Motor External Specification

NEMA 23 Linear Actuator Stepper Motor External

  • Part Number: 57AI56-2804E-150N104
  • Motor Type: External
  • Step Angle: 1.8deg
  • Bi/Unipolar: Bipolar
  • Rated Current/phase: 2.8A
  • Driving Voltage: 24-48VDC
  • Frame Size: 57x57mm
  • Body Length: 56mm
  • Lead Length: 150mm
  • Lead Screw Diameter: Φ10mm
  • Lead/Revolution: 4mm
  • Lead/Step: 0.02mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 700g
  • Stepper Drive: DM542
