Size 57mm NEMA 23 L=56mm Precision Planetary Gearbox Reduction Stepper Motor

Size 57mm NEMA 23 L=56mm Precision Planetary Gearbox Reduction Stepper Motor

$70.00 – $75.00

In Stock:

30

Model: 57AI56-2804S-HGXX

Weight: 1.2KG

Certificated: ISO, CE, RoHS

Ships From China

NEMA 23 Precision Geared Stepper: This big geared stepper motor has a frame size 57-56mm with rated current 2.8a, integrated with HG series high precision planetary gearbox that has a wide range of gear ratio 3 to 100. It is an ideal choice for the applications that require high torque or low speed but high precision motion control.

NEMA 23 Precision Geared Stepper Specification

NEMA 23 Precision Geared Stepper

  • Part Number: 57AI56-2804S-HGXX
  • Step Angle: 1.8deg w/o gearbox
  • Bi/Unipolar: Bipolar
  • Holding Torque: 1.2Nm w/o gearbox
  • Rated Current/phase: 2.8A
  • Frame Size: 57x57mm
  • Motor Length: 56mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Gearbox Type: Planetary
  • Gear Ratio: 3-100:1
  • Efficiency: 96%-92%
  • Backlash at No-load: 15arcmin-25arcmin
  • Gearbox Length: 53mm-70mm
  • Shaft Diameter: Φ14mm
  • Shaft Length: 34mm
  • Keyway Length: 25mm
  • Stepper Drive: DM542

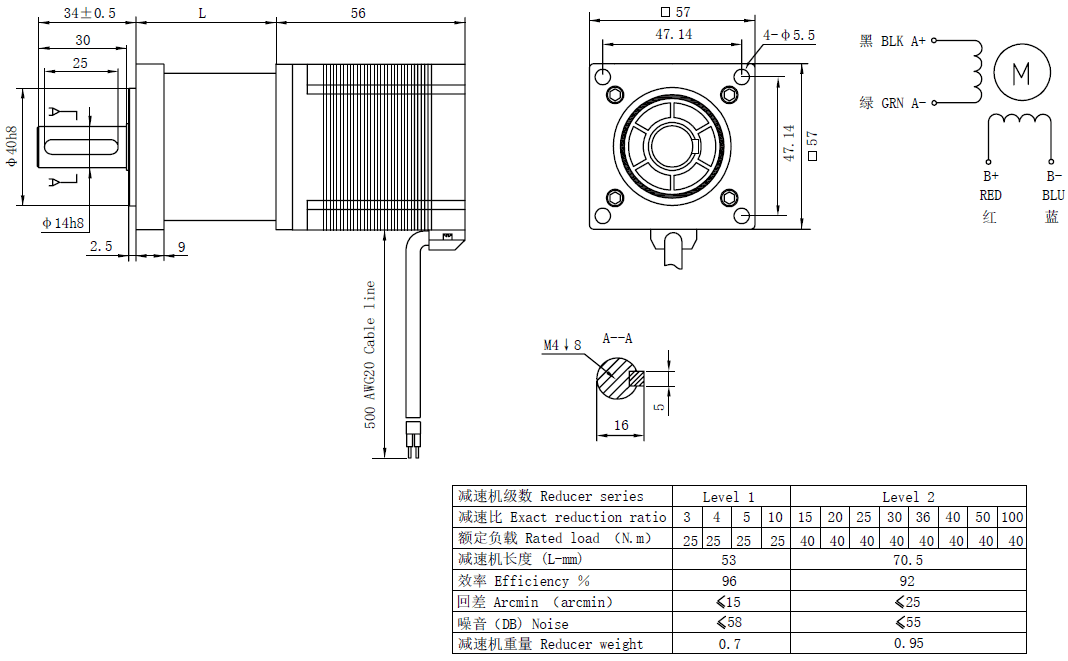

Overall Size

Gearbox Length(L)=53mm for ratio 5/1, 10/1; 70mm for ratio 20/1, 50/1, 100/1

Motor 4 Leads Connection: A+(Black), A-(Green); B+(Red), B-(Blue)

If you need a PDF data sheet, please send the email to: info@frankhumotor.com!
