Size 57mm NEMA 23 Stepper Motor Waterproof IP65 2.4Nm 4A 57x84mm

Size 57mm NEMA 23 Stepper Motor Waterproof IP65 2.4Nm 4A 57x84mm

$28.00

In Stock:

10

Model: 57AI84-IP65

Weight: 1.35KG

Certificated: ISO, CE, RoHS

Ships From China

10 in stock (can be backordered)

NEMA 23 Waterproof Stepper Motor: This size 57-84mm NEMA 23 stepper motor has 2.4Nm holding torque with an IP65 waterproof rating, which means this IP65 stepper motor can be fully protected against dust, and also can be protected against low pressure jets if water from all directions and limited ingress permitted.

NEMA 23 Waterproof Stepper Motor Specification

NEMA 23 Waterproof Stepper Motor

  • Part Number: 57AI84-IP65
  • Step Angle: 1.8deg
  • Holding Torque: 2.4Nm
  • Rated Current/phase: 4.0A
  • Driving Voltage: 24-48VDC
  • Protection Grade: IP65
  • Frame Size: 57x57mm
  • Body Length: 84mm
  • Shaft Diameter: Φ8mm
  • Shaft Length: 21mm
  • Number of Leads: 4
  • Lead Length: 1000mm
  • Weight: 1.35kg
  • Stepper Drive: DM556

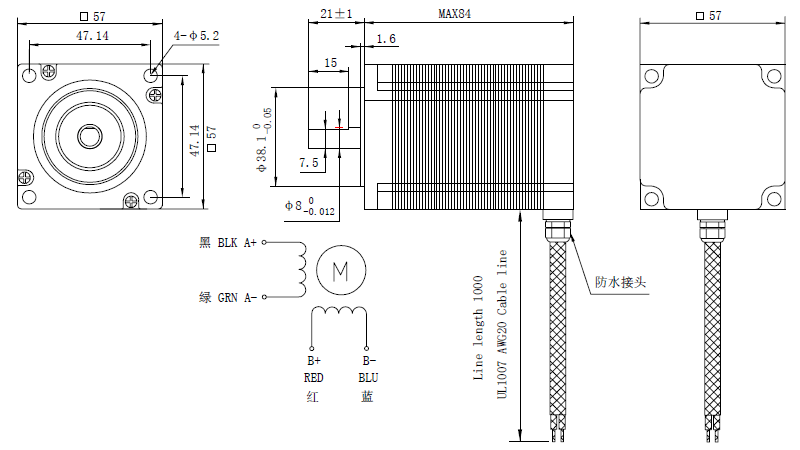

Overall Size

57AI84-IP65 Datasheet
