Size 86mm NEMA 34 Closed-loop Stepper Motor Waterproof IP65 8.5Nm with 1000CPR Encoder

Size 86mm NEMA 34 Closed-loop Stepper Motor Waterproof IP65 8.5Nm with 1000CPR Encoder

$75.00

In Stock:

10

Model: 86AI115EC-IP65

Weight: 4.5KG

Certificated: ISO, CE, RoHS

Ships From China

10 in stock (can be backordered)

NEMA 34 Closed Loop Stepper Motor IP65: This size 86-115mm NEMA 23 closed-loop stepper motor has 8.5Nm holding torque with an IP65 waterproof rating, which means this IP65 stepper motor can be fully protected against dust, and also can be protected against low pressure jets if water from all directions and limited ingress permitted.

NEMA 34 Closed Loop Stepper Motor IP65 Specification

NEMA 34 Closed Loop Stepper Motor IP65

  • Part Number: 86AI115EC-IP65
  • Step Angle: 1.8deg
  • Holding Torque: 8.5Nm
  • Rated Current/phase: 6.0A
  • Driving Voltage: 24-72VDC
  • Protection Grade: IP65
  • Frame Size: 86x86mm
  • Body Length: 144mm
  • Shaft Diameter: Φ14mm
  • Shaft Length: 37mm
  • Keyway Length: 25mm
  • Number of Leads: 4
  • Lead Length: 3000mm
  • Weight: 4.5kg
  • Stepper Drive: CL86C

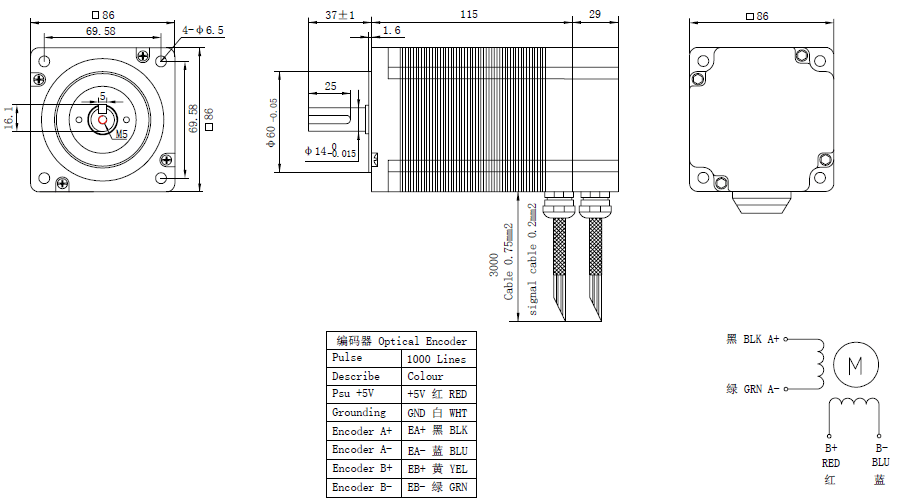

Overall Size

86AI115EC-IP65 Datasheet
