This ISS86 series integrated stepper servo driver motor integrates the stepper servo driver into the stepper motor, and the two are perfectly integrated. This integrated stepper servo driver motor perfectly integrates servo control technology in the digital stepper driver. This integrated stepper motor uses an 1000cpr optical encoder and high-speed sampling bit feedback every 50us. Once a position deviation occurs, the position deviation can be corrected immediately.

This NEMA 34 series integrated step is compatible with the dual advantages of stepper technology and servo technology. It has the characteristics of low heat, low vibration, and fast acceleration. It is a highly cost-effective motion control product.
The NEMA 34 Integrated Closed-loop Stepper Servo Drive Motor is exactly reliable and affordable, and has excellent performances in many industrial applications such as CNC router, 3D printer, robotics. etc.

NEMA 34 Integrated Closed-loop Stepper Servo Drive Motor Specifications

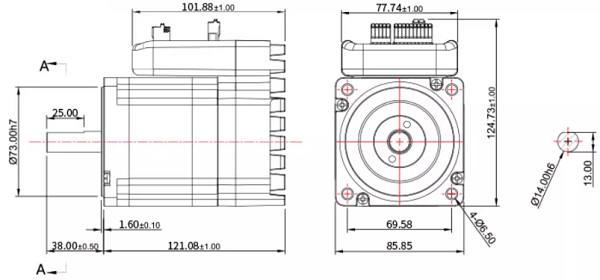

Model: ISS86-45

Step Angle: 1.8deg

Driving Voltage: 24-60VDC

Rated Current: 6.0A

Holding Torque: 4.5Nm

Body Length: 121mm

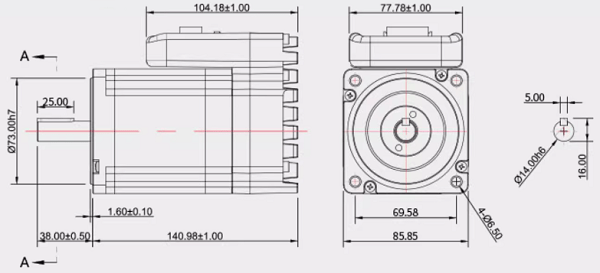

Model: ISS86-85

Step Angle: 1.8deg

Driving Voltage: 24-80VDC

Rated Current: 6.0A

Holding Torque: 8.5Nm

Body Length: 144mm

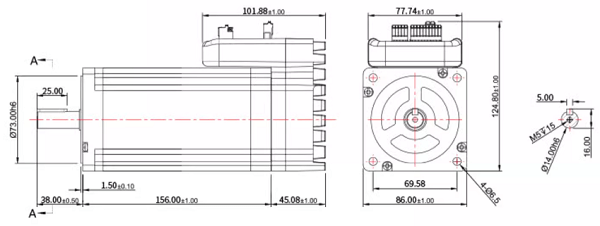

Model: ISS86-120

Step Angle: 1.8deg

Driving Voltage: 24-80VDC

Rated Current: 6.0A

Holding Torque: 8.5Nm

Body Length: 201mm
