Robot Motor NEMA 17 Bipolar 42-40mm 0.45Nm 1.68A 4 Leads

Robot Motor NEMA 17 Bipolar 42-40mm 0.45Nm 1.68A 4 Leads

$8.50

In Stock:

50

Model: 42AI40-BYGR

Weight: 0.35KG

Certificated: ISO, CE, RoHS

Ships From China

50 in stock (can be backordered)

Robot Motor NEMA 17 Stepper 40mm: This compact size 42mm (NEMA 17) hybrid bipolar stepper motor has a 1.8° step angle(200 steps/revolution) and body length 40mm. Each phase draws rated current 1.68A, generating a good holding torque of 0.45Nm/63.9oz-in. This precise motor is a good solution for robots, medical equipment, laboratory instruments, etc.

Robot Motor NEMA 17 Stepper 40mm SpeficaficationRobot Motor NEMA 17 Stepper 40mm

  • Manufacturing Part Number: 42AI40-BYGR
    Step Angle: 1.8deg
    Bipolar/Unipolar: Bipolar
    Holding Torque: 0.45Nm/63.9oz-in
    Rated Current/phase: 1.68A
    Phase Resistance: 1.95ohms
    Inductance: 4.4mH
    Driving Voltage: 12-24VDC
    Frame Size: 42x42mm
    Body Length: 40mm
    Shaft Type: D-cut
    Shaft Diameter: Φ5mm
    Shaft Length: 24mm
    D-cut Length: 20mm
    Number of Leads: 4
    Lead Length: 1000mm
    Weight: 350g
    Stepper Drive: FLKH2D1228DC

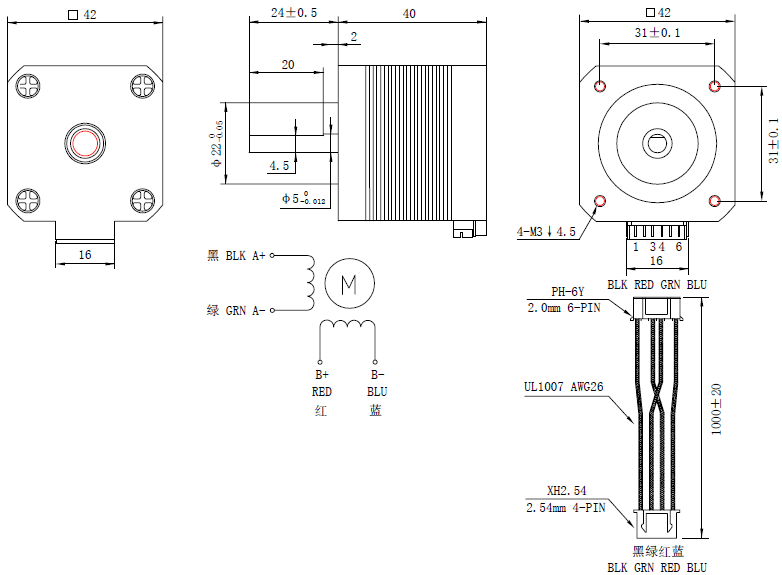

Overall Size

42AI40-BYGR Datasheet
