Robot Motor NEMA 8 Stepper Motor 20-34mm 0.02Nm 0.6A

Robot Motor NEMA 8 Bipolar 20-34mm 0.02Nm 0.6A 4 Leads

$13.50

In Stock:

50

Model: 20AI34-BYGR

Weight: 0.06KG

Certificated: ISO, CE, RoHS

Ships From China

50 in stock (can be backordered)

Robot Motor NEMA 8 Stepper 34mm: This small size 20mm (NEMA 8) hybrid bipolar stepper motor has a 1.8° step angle(200 steps/revolution) and body length 34mm. Each phase draws rated current 0.6A, generating a holding torque of 0.02Nm/2.84oz-in. This micro precise motor is a good solution for robots, medical equipment, laboratory instruments, etc.

Robot Motor NEMA 8 Stepper 34mm SpeficaficationRobot Motor NEMA 8 Stepper 34mm

  • Manufacturing Part Number: 20AI34-BYGR
    Step Angle: 1.8deg
    Bipolar/Unipolar: Bipolar
    Holding Torque: 0.02Nm/2.84oz-in
    Rated Current/phase: 0.6A
    Phase Resistance: 5.6ohms
    Inductance: 2.6mH
    Driving Voltage: 12-24VDC
    Frame Size: 20x20mm
    Body Length: 34.2mm
    Shaft Type: D-cut
    Shaft Diameter: Φ4mm
    Shaft Length: 10mm
    D-cut Length: 7mm
    Number of Leads: 4
    Lead Length: 500mm
    Weight: 60g
    Stepper Drive: FLKH2D1228DC

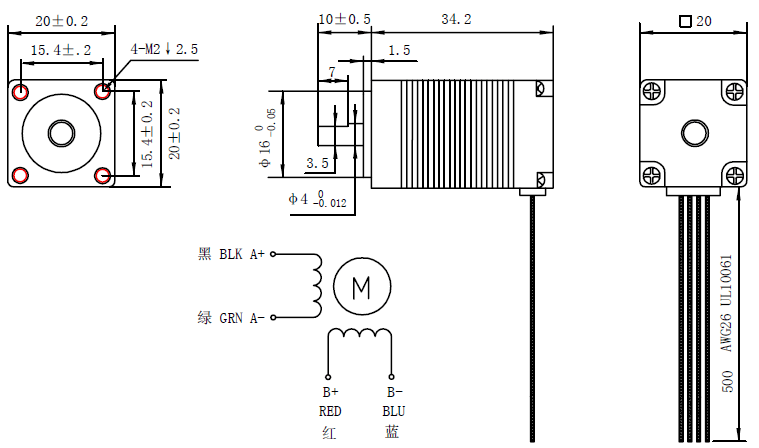

Overall Size

20AI34-BYGR Datasheet
